ProductsOur Featured Products

Magnetic Level Gauge With Transmitter & Alarm | MLG201

Continuous level monitoring with 4-20 mA transmitter output
Direct visible level indication
No process fluid in contact with the flapper indicating system
Safe for corrosive, toxic & flammable liquids
Economical level measurement

Three Phase SCR Power Controller For Transformer Load, 35 - 200 A | TPR-3P-48xxx-T

Phase angle control technology
4-20 mA / 0-10 V / 2-10 V / 0-5 V / 1-10 V control input
Suitable for 3-phase Transformer load
Configuration : 3-phase star without neutral / closed delta
Adjustable soft-start for smooth output voltage control
Adjustable soft control for smooth output voltage control

Relative Humidity / Dewpoint / Temperature Transmitter, Wall | HTE201

2 x 2-wire, 4-20 mA or 0-10 VDC outputs with RTD resistance output option
Any or both outputs can be assigned to RH or T or Dewpoint or specific derived physical quantity
Configuration and calibration using PC with Radix converter DCC501
Health / status (Heartbeat) LED
Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy

Industrial RTD with Protection Head | RHW201

-50 to 250°C (-58 to 482°F)
Non-bendable sheath
Class A or Class AA accuracy conforming to IEC 60751
Standard lengths are 100, 150, 200 & 300mm (3.93, 5.90, 7.87, 11.81)"
Weatherproof / Flameproof / ATEX aluminium head
Adjustable or fixed threaded or flanged process connection

Compact RTD Sensors With Integral Transmitter | RCP211

-50 to 160°C (-58 to 320°F)
Sheath material SS316L (1.14404)
Surface finish Ra ≤ 0.4 μm for wetted parts, Ra ≤ 0.8 μm for non-wetted parts
Class A to IEC 60751 accuracy

Multifunction Meter With LED Display, 96Wx96Hx62D | MLD605

Power, Energy, Import/Export Energy, Dual Source
Accuracy Class 1.0 as per IEC62052-11
Modbus® RTU communication via RS-485 port
Customized display with bar graph for load current
Touch safe barrier terminals with terminal cover & sealing provisions
Energy Reset option
Dual Source input - Separate address for storing DG parameters
RPM measurement, Load Hrs, ON Hrs measurement
Field Programmable Star, Delta or Single Phase configuration
Updating time of 1 second
User settable display scroll time
Password protected setup mode
Wide-range AC/DC auxiliary power supply

Air Velocity Transmitter | AVX201

0-5 m/s or 0-20 m/s
DIP switch selectable air velocity range
RS485 Modbus® RTU
Analog output : 4-20 mA or 0-10 V
Measures air velocity & air flow in duct

About Us

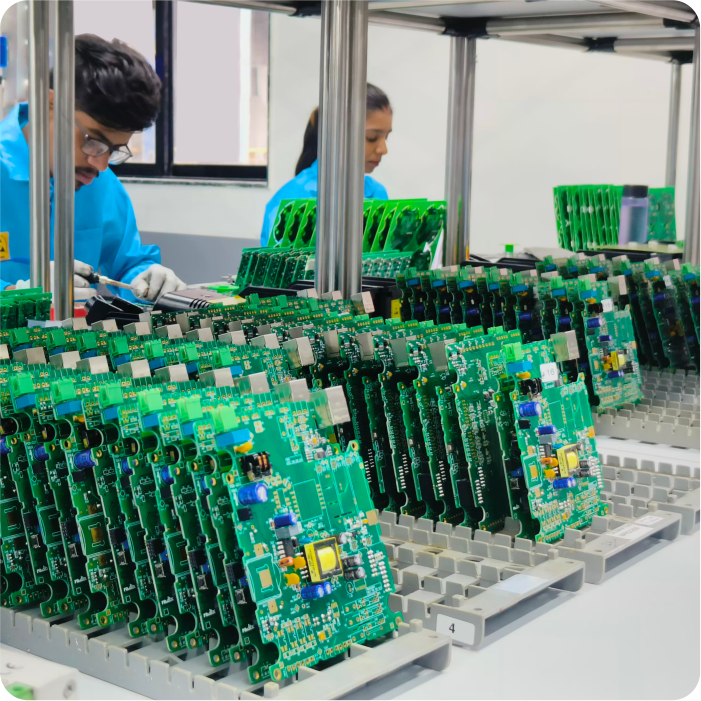

Established in 1980, Radix is one of India's foremost manufacturing companies in the field of Industrial Instrumentation and Automation. Starting out as a 2-man team in Bombay in 1980, Radix has now grown to over 600 employees. Radix enjoys strong customer confidence on the back of our proven products and technologies, design and development capability, and a willingness to back our products.

100s of OEMs have chosen Radix, with relationships spanning decades. Radix is the preferred choice for instrumentation and automation solutions for 1000s of customers in different industries.

Radix - Quality Instrumentation from India

45+ Years of application expertise and a commitment to deliver solutions, products, and information that propel our customers forward.
