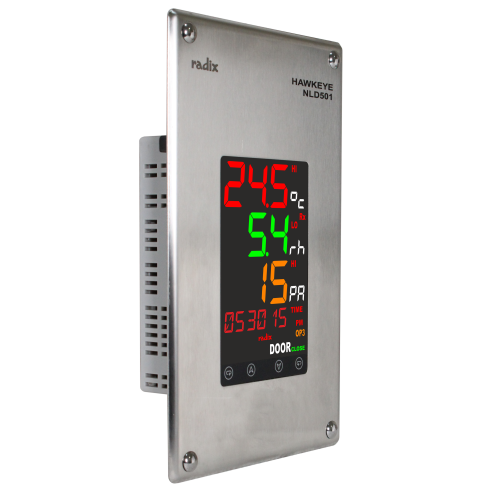

Multicolour Clean Room Monitor
Model : Hawkeye NLD501
- Relative Humidity, Temperature & Differential Pressure measurement
- Software programmable channel ranges, units & input types
- 3 programmable alarms with buzzer and output to operate external relays
- Real Time Clock with battery back-up
- Real Time Clock synchronized with server clock via Ethernet
- Software calibration for all 3 channels
- 20-30 VDC supply
- Advanced digital Relative Humidity and Temperature sensor technology
- Guaranteed back-up against communication/SCADA/computer failures
- Different 4 communication options are available RS485 Modbus RTU, BACnet MS/TP, Ethernet Modbus® TCP, BACnet IP, 11) Datalogging option available
- Full datalogging control through utility
- Supports Modbus ® TCP Protocol to get data using Modbus ® TCP client on SCADA/PLC/HMI
- 4 x Modbus ® TCP clients supported at a given time (multi-master/multi-host)
- FTP as an open standard protocol - instrument can be used by a third party system integrator with any SCADA or PLC or HMI
- 3 x FTP clients supported at a given time with 180 seconds internal FTP connection timeout
