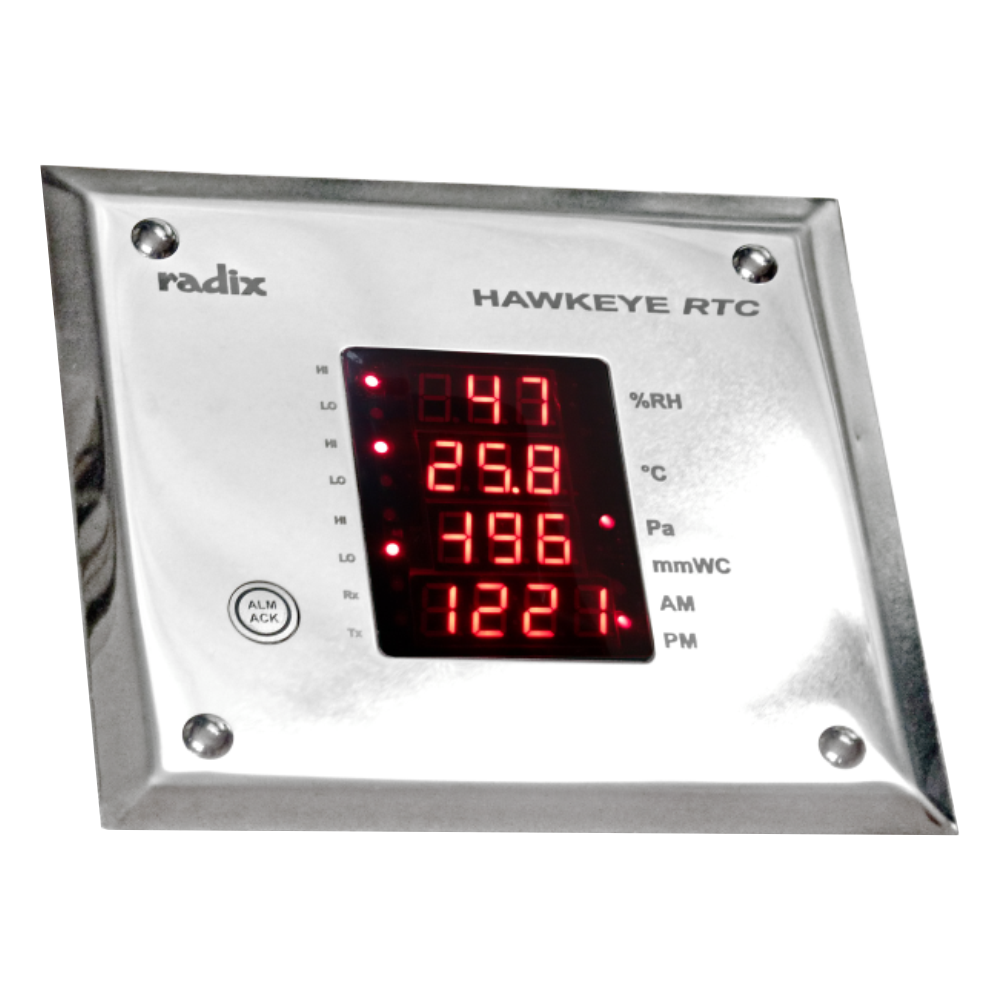

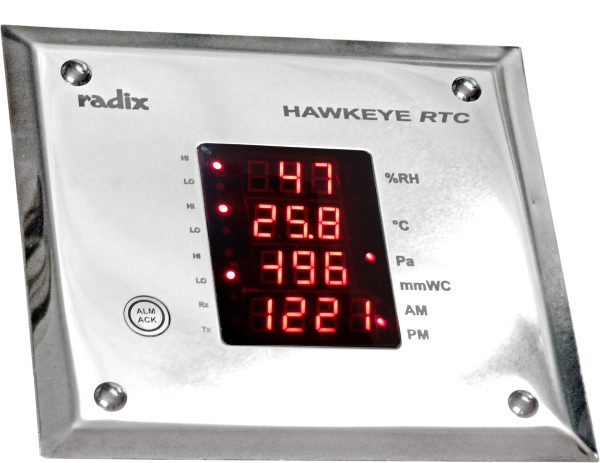

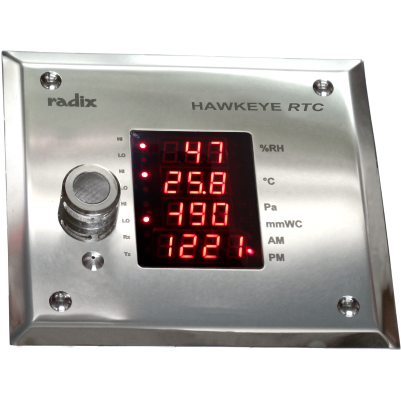

Clean Room Monitor, With RTC
Model : Hawkeye-RTC
- 3 Channel RH, Temperature & DP measurement
- Potential free digital input for AHU status
- Real time clock with battery backup
- 3 programmable alarms with visual annunciation
- No-touch operation for Alarm Acknowledge
- 3 x 4-20mA or 0-10V analog output
- RS485/Modbus RTU
- 18-35 VDC supply
- 4 row, 0.56” seven segment Display
- Datalogging feature
- Process value, alarm and time stamp logging
- Memory for 31 days with 1 minute datalogging interval
- Full datalogging control through utility
Hawkeye 4 Row Clean Room Monitor, With RTC
3 X Integral, Remote, Slave Inputs
Potential free AHU input
buzzer output
3 Analog output
31 days serial datalogging
Radix HAWKEYE RTC Clean Room Monitor is a premium monitoring solution designed for regulated environments like cleanrooms, pharma labs, and manufacturing zones. HAWKEYE RTC can simultaneously monitor and display critical parameters such as Temperature, Relative Humidity, Differential Pressure, Air Velocity, and CO₂. Powered by a high-speed 32-bit microprocessor, it delivers fast, stable, and high-accuracy readings with optional 21-day onboard data logging for compliance with GMP/GLP standards. The unit offers flexible communication via RS-485 (Modbus RTU) or Ethernet, and comes in a sleek, flush-mountable SS304 or aluminum enclosure.
Hawkeye 4 Row Clean Room Monitor, With RTC
Hawkeye 4 Row Clean Room Monitor, With RTC
