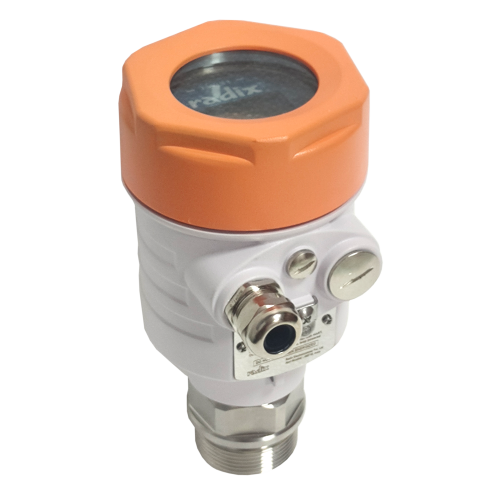

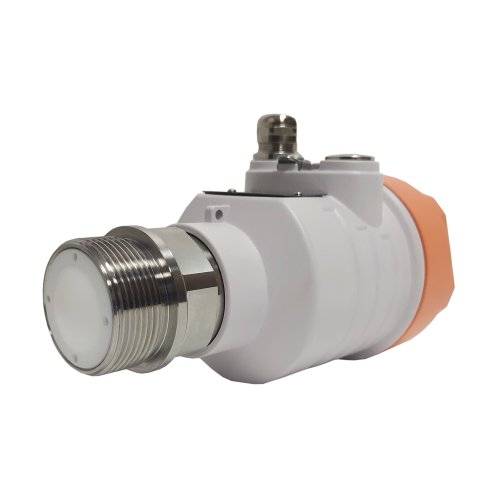

Radar Level Transmitter For Liquids
Model : RLT301
RLT301, 0-10 m (32 ft), Without sealed end, Threaded 1.5" (38 mm) BSP, SS304, With bluetooth connectivity
- Lower dead band 100 mm (3.93")
- Range upto 120 m (393 ft)
- High resolution distance measurement
- Functions well in adverse conditions
- Better accuracy, repeatability and reliability
Radar Level Transmitter For Liquids - Model RLT301
Guided wave radar transmitter works on the principle of time and travel (TDR). Radar wave travels at the velocity of light. The flying time is converted into level signal via the electronic components. The probe emits high frequency wave pulses which travels along a cable probe or a rod probe. When the wave pulse reaches the medium surface, it will be reflected and received by the receiver, and then the distance signal will be converted into level signals.
