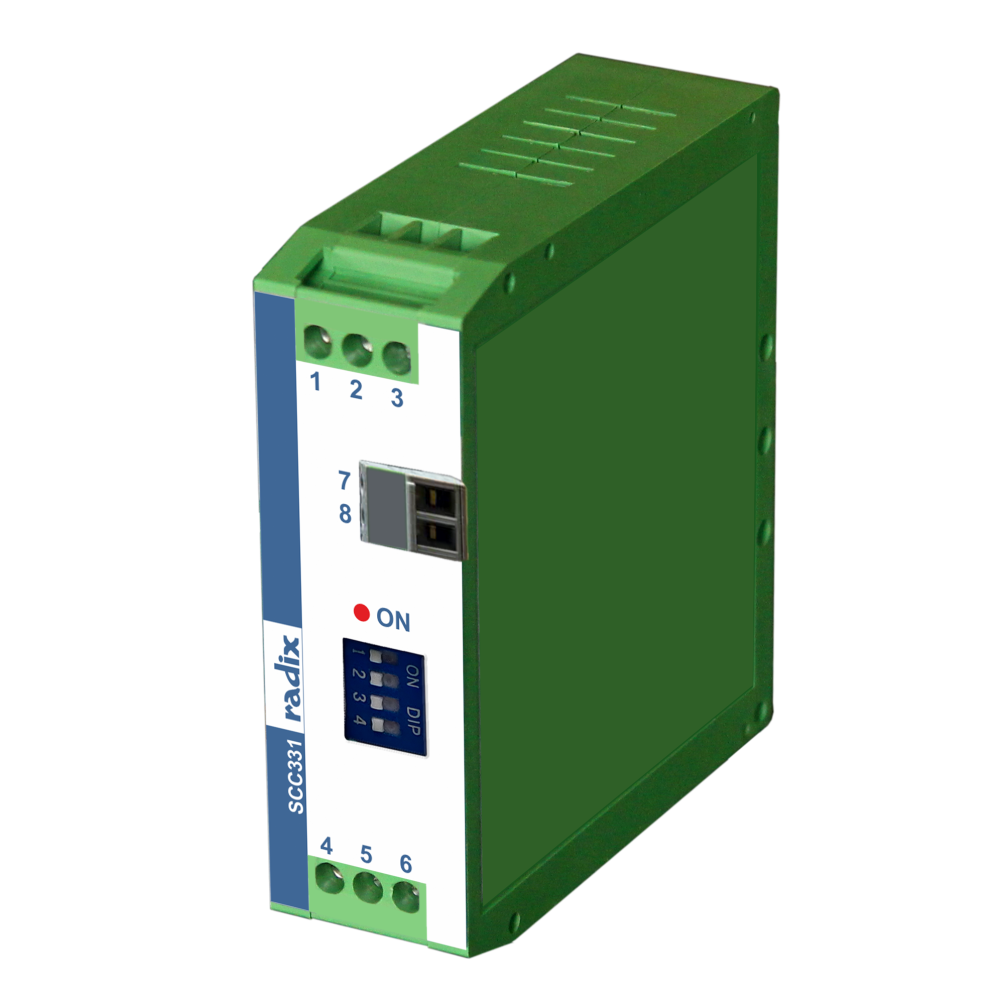

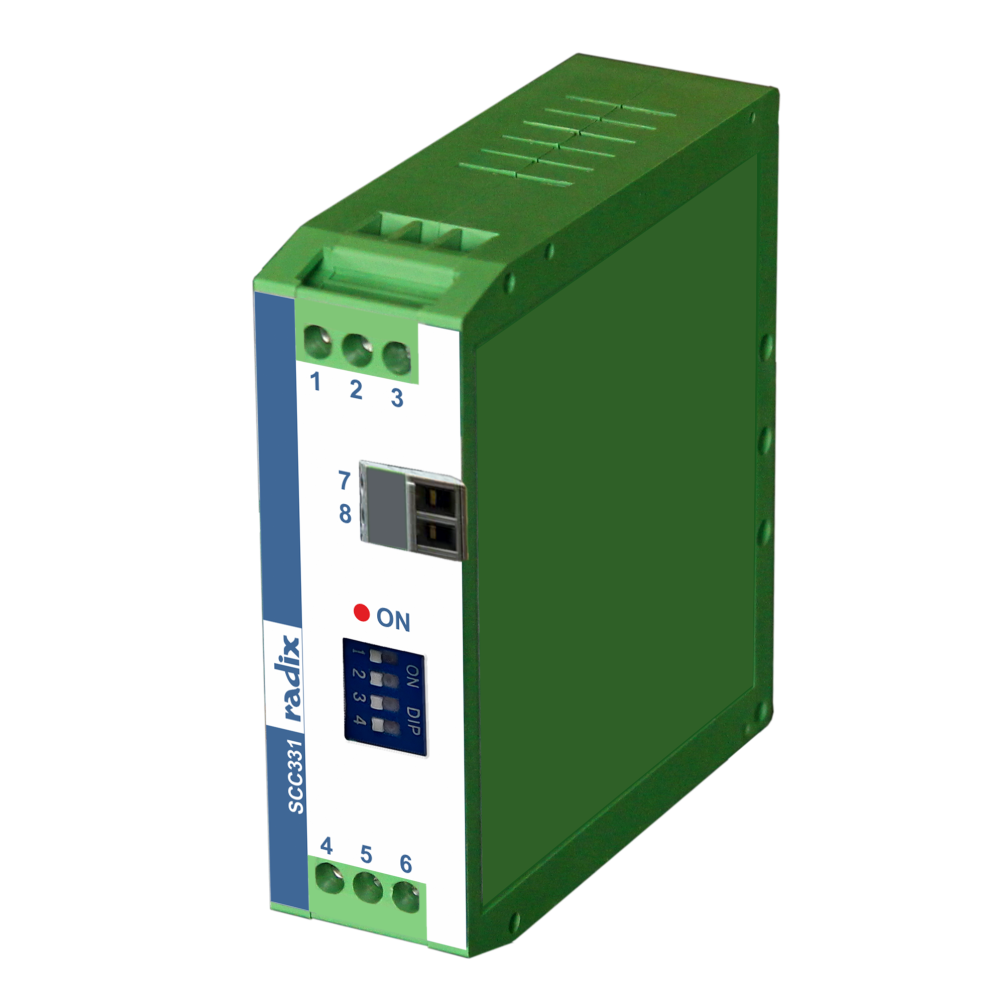

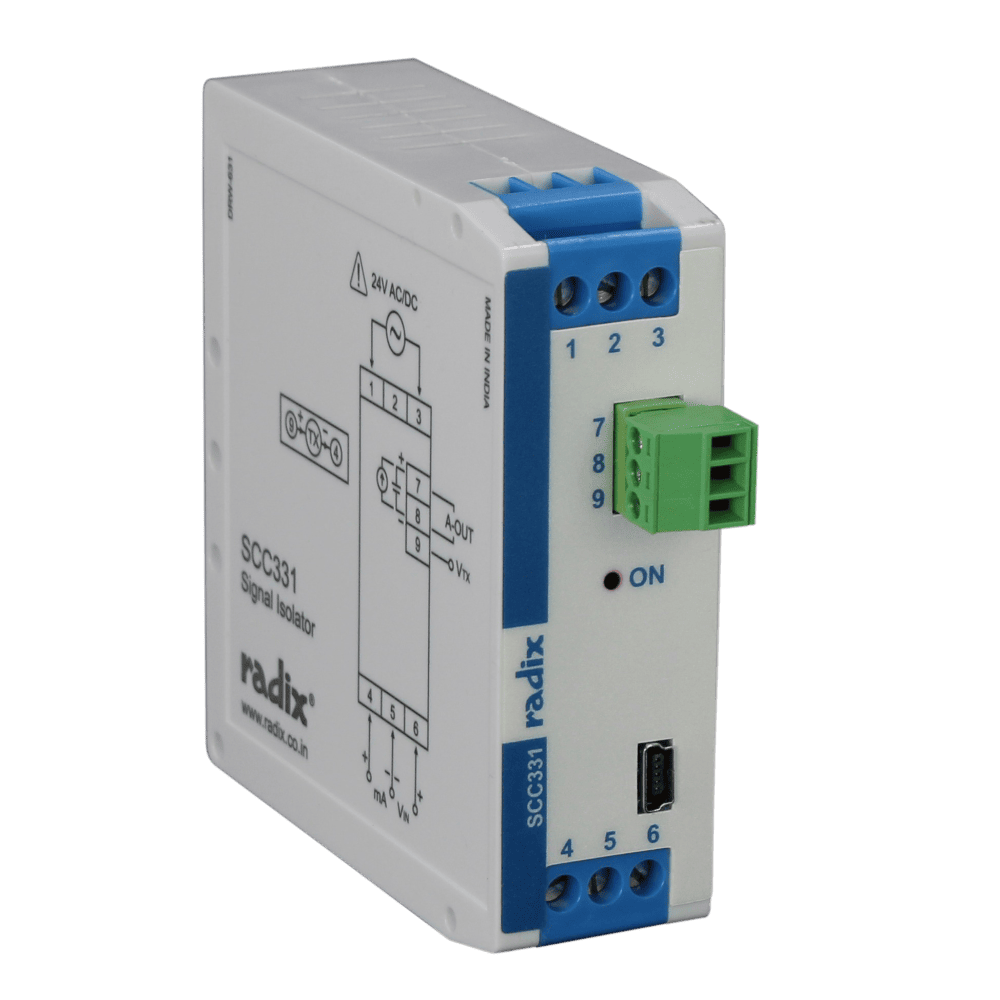

Signal Isolator - Temperature / Linear Input, Single Output
Model : SCC331
SCC331, RTD, 4-20 mA, High, 18-42 VDC, 0-100
- Input : Temperature : Pt100, TC J, K, R, S, T; Linear : 0-20 mA, 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V, 0/4-20 mA or 0-1/2/5/10 VDC output
- Isolation 1500 VAC
- Supply : 18-42 VDC or 85-265 VAC
Signal Isolator, Single Output, DIN Rail | SCC331 | Radix
Similar Products

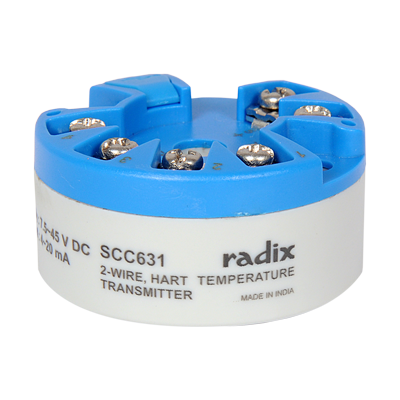

HART, 2-wire Temperature Transmitter, Isolated, Universal Input |SCC631
- Universal Input settings with HART protocol for various input signals
- 4-20 mA input (optional)
- 2-wire technology, 4-20 mA analog output
- High accuracy over total ambient temperature range
- Optical isolation
- An internal temperature sensor for active temperature compensation
- Wide supply voltage range
- User programmable measurement range settings
- Configuration with HART/USB interface
- Simple and user friendly utility software

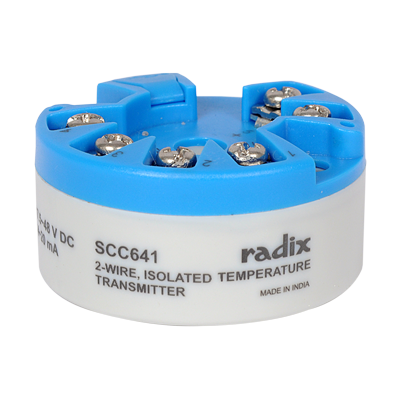

2-wire Temperature Transmitter, Isolated, Head Mount, Programmable, Universal Input |SCC641
- 4-20 mA input (optional)
- 2-wire technology, 4-20 mA analog output
- High accuracy over total ambient temperature range
- Optical isolation
- An internal temperature sensor for active temperature compensation
- Wide supply voltage range
- User programmable measurement range settings
- Configuration with USB interface
- Simple and user friendly utility software

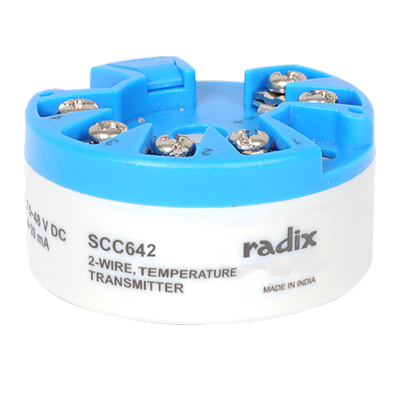

2-wire Temperature Transmitter, Non-Isolated, Head Mount |SCC642
- User programmable with PC based utility software and USB configurator
- 2-wire technology, 4-20 mA analog output
- Accuracy over total ambient temperature range
- Supply range 7.5-45 VDC
- User programmable measurement range, unit, bias, preset output, etc
Signal Isolator - Temperature / Linear Input, Single Output |SCC331
- Input : Temperature : Pt100, TC J, K, R, S, T; Linear : 0-20 mA, 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V, 0/4-20 mA or 0-1/2/5/10 VDC output
- Isolation 1500 VAC
- Supply : 18-42 VDC or 85-265 VAC
Customers Also Viewed

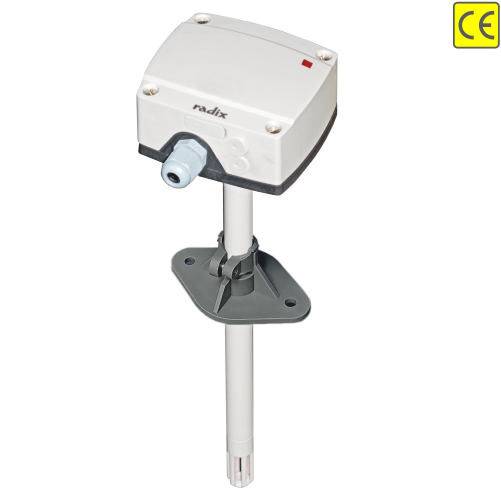

Humidity / Dewpoint / Temperature Transmitter, Wall & Duct |HTW201
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs
- Any output can be assigned to any parameter
- Configuration and calibration using PC with Radix converter DCC501
- Health/status LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
- Wall, Duct, Outside & Remote sensor versions
- Convenient installation with 2-part housing with fixed back and removable electronics

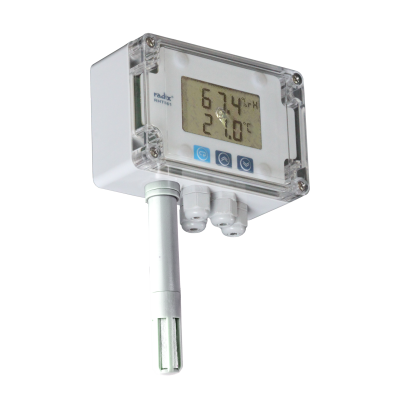

Dual Relative Humidity / Temperature 2-Wire Output Transmitter, Wall & Duct |RHT861
- 4 analog isolated outputs with true 2-wire operation, 2 RH, 2 T, 4 RH, 4 T
- Isolation : 1500 VAC RMS, 50 Hz/1 minute
- Precision Class A Pt100, Pt500, Pt1000 or band gap temperature sensor options
- Accuracy ±2% RH, ±0.5 deg C for band gap & ±0.2 deg C for RTD Class A sensor
- Any number of outputs (1-4) can be assigned to any parameter : RH, T or dew point
- Dual row 7 segment LCD option to display Relative Humidity, Temperature or Dew point (programmable)
- Parameter configuration via LCD & keys or remote display module or PC configurator using USB to Serial Converter DCC501

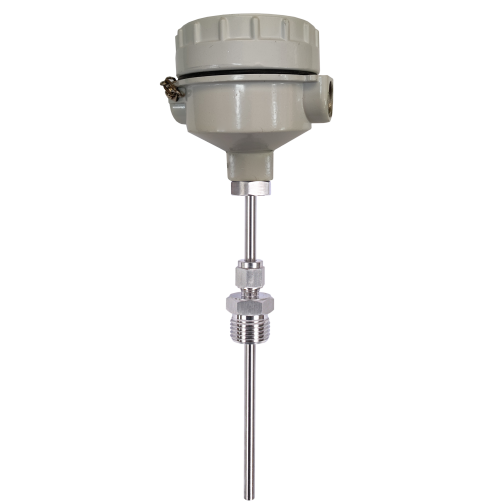

Industrial RTD with Protection Head |RHW201
- -50 to 250°C (-58 to 482°F)
- Non-bendable sheath
- Class A or Class AA accuracy conforming to IEC 60751
- Standard lengths are 100, 150, 200 & 300mm (3.93, 5.90, 7.87, 11.81)"
- Weatherproof / Flameproof / ATEX aluminium head
- Adjustable or fixed threaded or flanged process connection

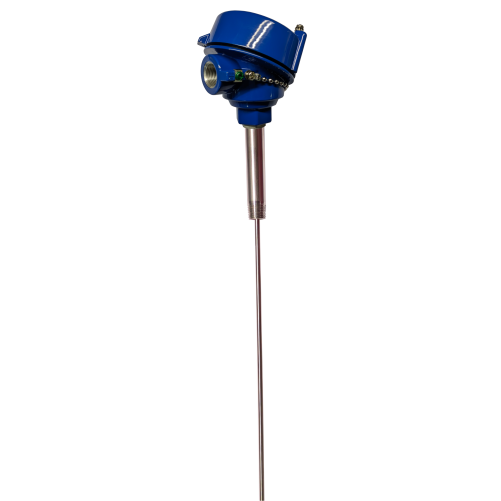

Industrial Thermocouples with Protection Head |THW501
