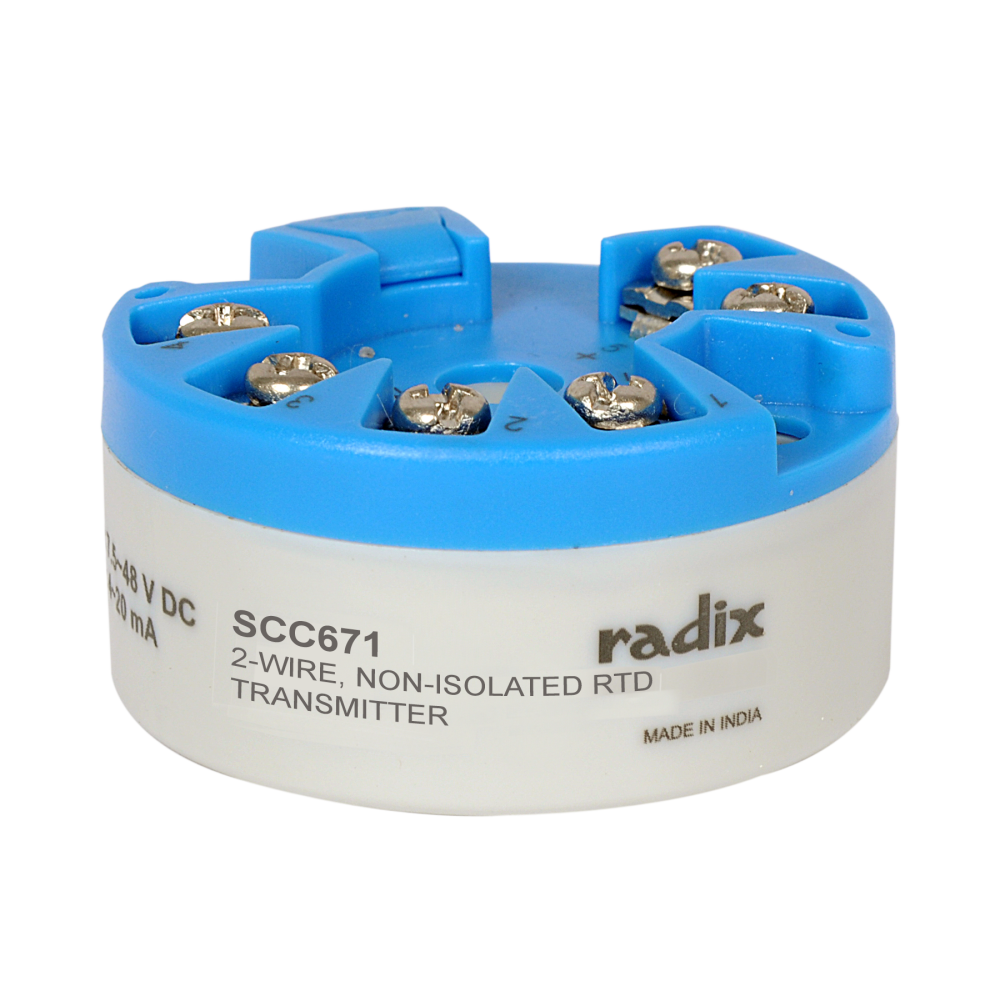

2-wire Temperature Transmitter, Non-isolated, Ultra-fast, Head Mount, Programmable, RTD Input
Model : SCC671
- Input : RTD Pt100, Pt500, Pt1000 (2-wire, 3-wire)
- 2 milliseconds, extremely fast response time of output
- 2-wire, 4-20mA analog output
- 0.1% accuracy
- Continuous analog measurement due to analog signal path
- Loop supply voltage : 7.5-30 VDC
- PC based utility software for sensor break detection option, range, unit, fine calibration
Similar Products
.png&w=3840&q=75)
HART, 2-wire Temperature Transmitter, Isolated, Universal Input, LCD Display, Flameproof |SCC631
- Universal Input settings with HART protocol for various input signals
- 4-20 mA input (optional)
- 2-wire technology, 4-20 mA analog output
- High accuracy over total ambient temperature range
- Optical isolation
- An internal temperature sensor for active temperature compensation
- Wide supply voltage range
- User programmable measurement range settings
- Configuration with HART/USB interface
- Simple and user friendly utility software
.png&w=3840&q=75)
2-wire Temperature Transmitter, Isolated, Head Mount, Programmable, Universal Input |SCC641
- 4-20 mA input (optional)
- 2-wire technology, 4-20 mA analog output
- High accuracy over total ambient temperature range
- Optical isolation
- An internal temperature sensor for active temperature compensation
- Wide supply voltage range
- User programmable measurement range settings
- Configuration with USB interface
- Simple and user friendly utility software
.png&w=3840&q=75)
2-wire Temperature Transmitter, Isolated , Din-rail, Universal Input |SCC602
- 2-wire technology, 4-20 mA analog output
- Universal Input includes thermocouples, RTDs, Linear Inputs
- High accuracy over total ambient temperature range
- An internal temperature sensor for active temperature compensation
- 4-20 mA input (optional)
- Wide supply voltage range
- User programmable measurement range settings
- Configuration with SB interface
- Simple and user friendly utility software
.png&w=3840&q=75)
2-wire Temperature Transmitter - RTD Input |TX1DR
- Input : RTD Pt100, Pt50, Pt200, Pt500, Pt1000
- 2-wire, 4-20mA analog output
- Accuracy : ±0.1% of span
- Loop supply : 6.5 to 32 VDC
- 8 SPAN ranges, 25 to 600°C / 45 to 1080°F
